| 品牌LUCKYWORLD | 有效期至长期有效 | 最后更新2025-11-24 19:07 |
| D162400*1200*100mm | D162000*2000*100mm | D161200*1200*100mm |
| 浏览次数0 |

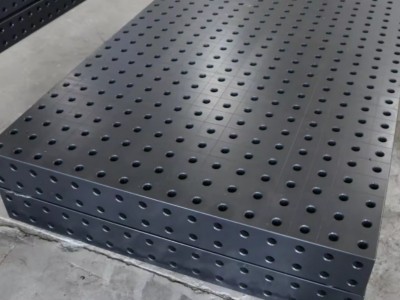

D16 welding table
D16-Product Details

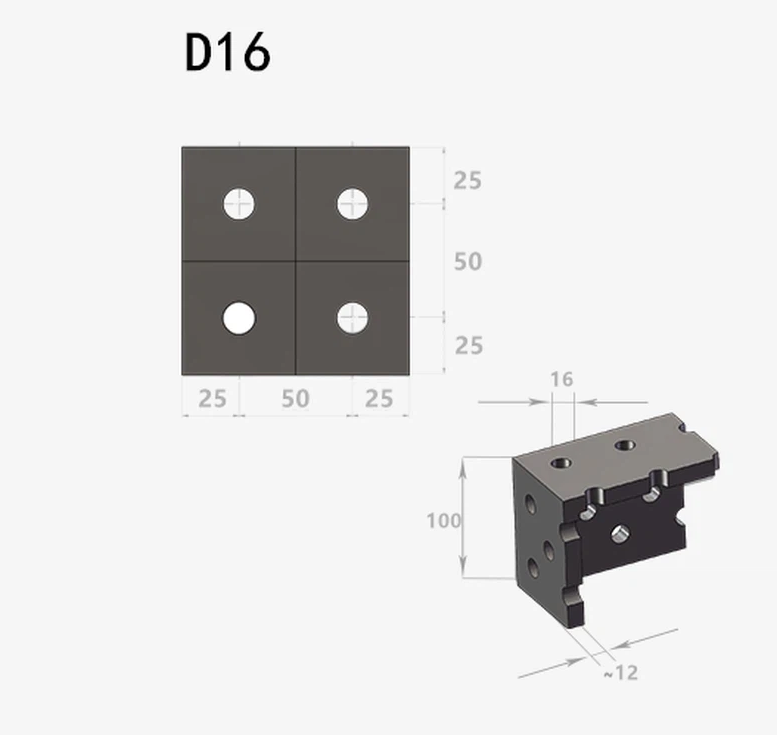

1. Grid line specifications on the workbench surface: 50x50±0.05mm; 1mm scale lines on the two adjacent sides of the workbench in the X and Y directions
2. Aperture and accuracy: φ16.16±0.03mm
3. Hole spacing: 50±0.03mm
4. Flatness: 0.1mm/m2
5. Verticality: 0.1mm/200mm
6. Parallelism: 0.1mm/1000mm
Parallelism and verticality (adjacent sides): 0.1/1000mm
