| 品牌LUCKYWORLD | 有效期至长期有效 | 最后更新2026-01-03 09:22 |
| D28 cast iron3000*1500*200mm | D28 cast iron2400*1200*200mm | D28 cast iron2000*2000*200mm |
| 浏览次数51 |

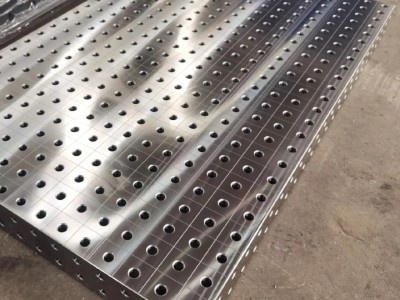

D28 welding table
D28-Product Details

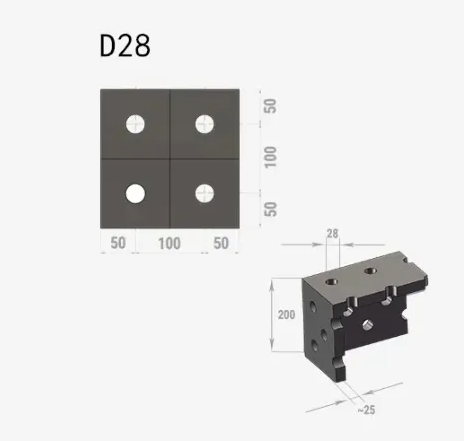

1. Grid line specifications on the workbench surface: 100x100±0.05mm:
1mm scale lines on the two adjacent sides of the workbench in the X and Y directions
2. Aperture and accuracy: p28.15±0.03mm
3. Hole spacing: 100±0.03mm
4. Flatness: 0.1mm/m2
5. Verticality: 0.1mm/200mm
6. Parallelism: 0.1mm/1000mm
7. Parallelism and verticality (adjacent sides): 0.1/1000mm
